INDUSTRIAL APPLICATION

MARINE

FIXED WING – PASSIVE & ENC

Clear Communication in Wind and Water

MARINE COMMUNICATION

Kebisingan angin dan mesin, semburan garam, laut yang berombak di lingkungan laut, Komunikasi adalah kunci kinerja yang efektif.

Interkom Digital Seri 9100: Jumlah pengguna, radio, dan perangkat tambahan tak terbatas; kompatibilitas jaringan IP; headset yang dapat digunakan dengan stasiun kru digital berkabel dan nirkabel; pemrograman fungsional individual untuk setiap pengguna. Performa, daya tahan, dan keandalan dengan kesederhanaan dan fleksibilitas yang tak tertandingi.

Interkom Wireless Seri 9900, gabungan Seri 9500 & 9800 , memaksimalkan komunikasi yang jernih dan sensasi performa kecepatan tinggi dan menambah kebebasan mobilitas tanpa terikat pada sistem kabel.

MARINE HEADSET COMMUNICATION

MARINE COMMUNICATION - SERIES 9900

Sistem Komunikasi Headset Nirkabel dari David Clark Company memberikan kebebasan, mobilitas, dan komunikasi yang jernih tanpa harus terikat dengan kapal. Ideal untuk berbagai jenis kapal kerja, kapal tunda, kapal penarik, tongkang, feri, kapal patroli pelabuhan, dan kapal Penjaga Pantai, serta kapal cepat dan berperforma tinggi.

Headset - Series & Model

H 9 9 4 0
H 9 9 7 5
H 9 9 8 0
H 9 9 8 5

Wireless Componenet & Support

U9910 - BSW (Belt Station)
U9913 - BSW (Belt Station)
U9925 - GEM
Cord Assemblies
ANTENNA
Batteries & Charger

MARINE - SERIES 9100 DIGITAL

Sistem Komunikasi Headset Nirkabel dari David Clark Company memberikan kebebasan, mobilitas, dan komunikasi yang jernih tanpa harus terikat dengan kapal. Ideal untuk berbagai jenis kapal kerja, kapal tunda, kapal penarik, tongkang, feri, kapal patroli pelabuhan, dan kapal Penjaga Pantai, serta kapal cepat dan berperforma tinggi.

Flexible Functionality and Work-Ready Simplicity for Critical Communications

Lingkungan kerja yang sangat bising atau berangin menghadirkan tantangan tersendiri bagi komunikasi penting. Sistem Interkom Digital Seri 9100 menawarkan solusi yang memberikan transmisi dan penerimaan suara yang jernih di lingkungan yang sulit dijangkau komunikasi, sekaligus menggabungkan fleksibilitas opsi pemrograman satu atau beberapa kanal untuk memberikan fleksibilitas yang lebih baik bagi pengguna yang jumlahnya hampir tak terbatas.



Headset - Series & Model

H 9 9 4 0
H 9 9 7 5
H 9 9 8 0
H 9 9 8 5

Wireless Componenet & Support

U9910 - BSW (Belt Station)
U9913 - BSW (Belt Station)
U9925 - GEM
Cord Assemblies
ANTENNA
Batteries & Charger

DIGITAL WIRELESS System - DC 9100 Series

HEADSET - Series & Model

DC - H9130

H9130/ PN – 40864G-04

Dual Ear, Over-the-Head Style

The H9130 noise-attenuating headset is compatible with both U9110 and U9111 wired Headset Stations, as well as U9110-BSW wireless Belt Stations



DC - H9190

H9130/ PN – 40864G-04

Singe Ear, Over-the-Head Style

The H9190 Headset is compatible with both U9110 and U9111 wired Headset Stations, as well as U9110-BSW wireless Belt Stations

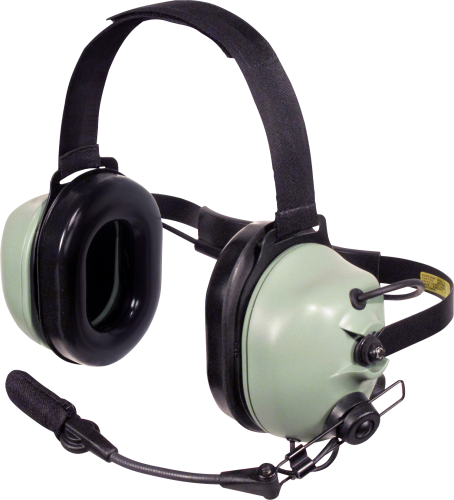

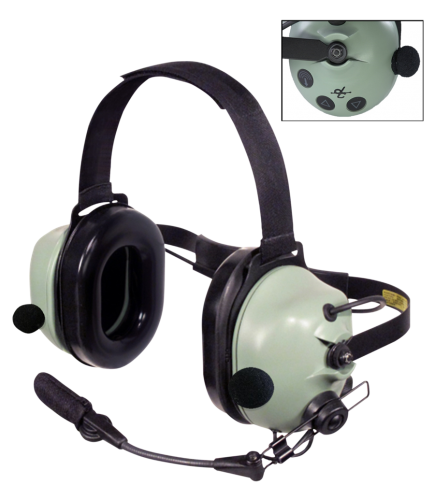

DC - H9140

H9140/ PN – 40867G-09

Dual Ear, Behind-the-Head Style

The H9140 noise-attenuating headset is compatible with both U9110 and U9111 wired Headset Stations, as well as U9110-BSW wireless Belt Stations



DC - H9140 - HT

H9140- HT/  PN – 40867G-10

Dual Ear, Behind-the-Head Style

The H9140-HT headset is compatible with both U9110 and U9111 wired Headset Stations, as well as U9110-BSW wireless Belt Stations

DC - H9180

H9180/ PN – 41032G-07

Dual-Ear, Under-Helmet Style

The H9180 Headset is designed for use under Military Ballistic Helmets, and is compatible with both U9110 and U9111 wired Headset Stations, as well as U9110-BSW wireless Belt Stations

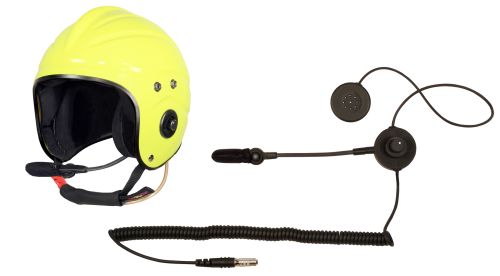

DC - H9185

H9185/ PN – 41096G-03

Headset/Helmet Communication Kit

The H9185 Headset/Helmet Kit is designed for use with Gecko Open-Face and Full-Face Marine Safety Helmets, as well as the Blueray helmet from Future Safety. It is compatible with both U9110 and U9111 wired Headset Stations, as well as U9110-BSW wireless Belt Stations



WIRELESS - Component & Support

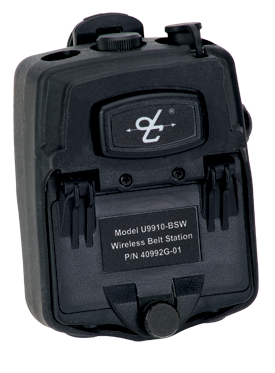

U 9 9 1 0 - B S W

U9910 – BSW / PN – 40992G-01

    • Hands-free, full duplex intercom via system Gateway
    • Range of up to 300 feet (line-of-sight) to and from the Gateway
    • Once linked to a Gateway, automatically reconnects on each power-up until purged from system (“strong link”)
    • Up to 4 Belt Stations can be connected to the system Gateway
    • Marine-grade, water-tight enclosure and components
    • Audible voice prompts for link/purge status, out-of-range, low battery
    • Easily accessible battery compartment with captive thumb screw
    • Powered by Li-Polymer battery (24 hours continual usage), easily removed for charging (3-4 hours) (not included; must be purchased separately)
    • VOX control with proprietary “helper” tone, assists in ideal VOX setting
    • Large PTT for link, radio PTT, VOX override
    • Power button with LED indicator for visual status of link, PTT and battery charge
    • Military-grade, twist-lock headset connector
    • Rubberized outer skin, black
    • 360-degree rotational belt clip

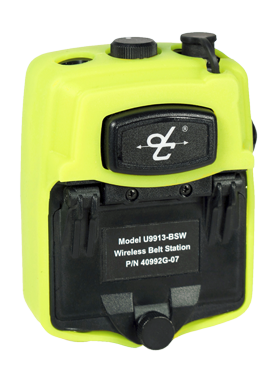

U 9 9 1 3 - B S W

U9913 – BSW / PN – 40992G-07

    • Same as U9910-BSW, except no PTT transmit capability outside the intercom (no radio transmit)
    • Hands-free, full duplex intercom via system Gateway
    • Range of up to 300 feet (line-of-sight) to and from the Gateway
    • Once linked to a Gateway, automatically reconnects on each power-up until purged from system (“strong link”)
    • Up to 4 Belt Stations can be connected to the system Gateway
    • Marine-grade, water-tight enclosure and components
    • Audible voice prompts for link/purge status, out-of-range, low battery
    • Easily accessible battery compartment with captive thumb screw
    • Powered by Li-Polymer battery (24 hours continual usage), easily removed for charging (3-4 hours) (not included; must be purchased separately)
    • VOX control with proprietary “helper” tone, assists in ideal VOX setting
    • Large PTT for link and VOX override
    • Power button with LED indicator for visual status of link, PTT and battery charge
    • Military-grade, twist-lock headset connector
    • Rubberized outer skin, hi-visibility yellow
    • 360-degree rotational belt clip

U 9 9 2 0 - G P B

U9925 – GEM/ PN – 40995G-03

Gateway Expansion Module

    • Interface for up to four Wireless Gateways (U9922-G38 or EU version)
    • Eliminates the need for a wired system component
    • The U9925-GEM is fully optimized to handle the power requirements of multiple wireless gateways, eliminating the potential for system noise and performance degradation
    • Weather-resistant enclosure
    • Water-tight, marine-grade connector assemblies
    • Power connector for C98-20PW power cord

CORD ASSEMBLIES

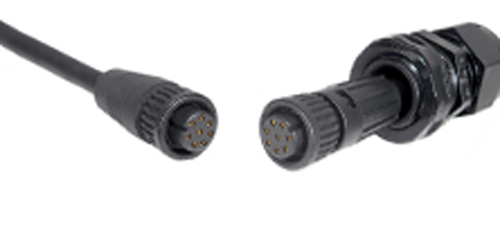

C99-20CX

C99-20CX

Interface Cord

U9921-GUV Interface

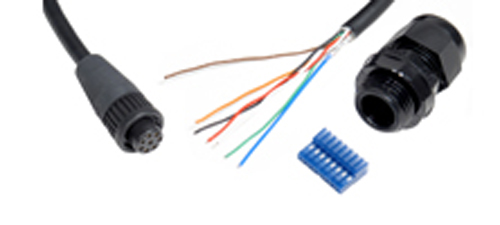

C99-20LL

C99-20LL

Interface Cord

U9921-GUV Interface

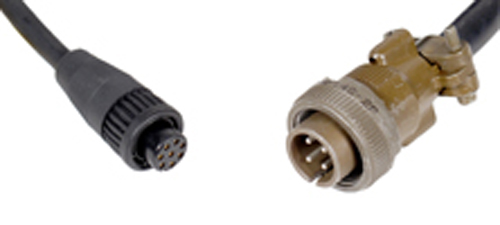

C99-20MS

C99-20MS

Interface Cord

U9921-GUV Interface;

U9922-G38 Interface;

U9925-GEM Module

BATTERIES/ CHARGERS

40688G-90

Battery

  • Li-Polymer battery pack

  • 3.7V nominal voltage

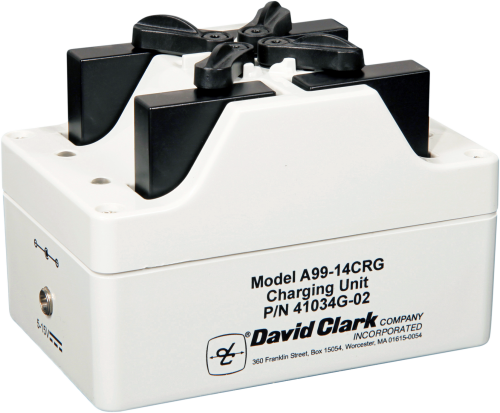

A99-14CRG

Charging Unit, 4-Bay

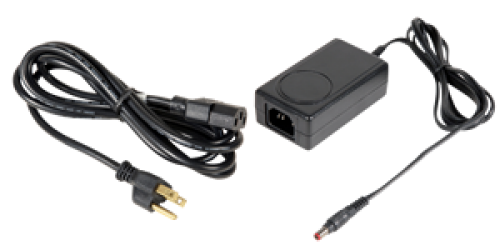

C99-14AC2 (230VAC)

Battery Charger Power Supply Cord Kit Components:

Power Cord (6.5 ft/2 m)

ANTENNA

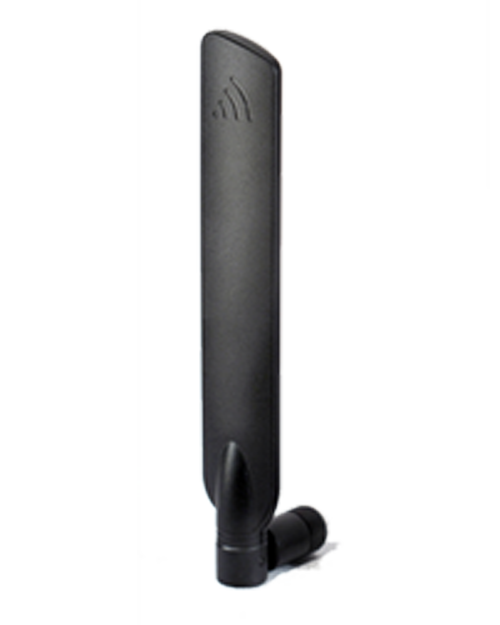

40688G-92

Whip Antenna



Features

  • One each included with U9922-G38 & U9921-GUV

  • 7-band blade-style antenna, hinged, with reverse-polarity SMA connector

  • Operates on appropriate frequency bands for 3800 and Universal Gateways

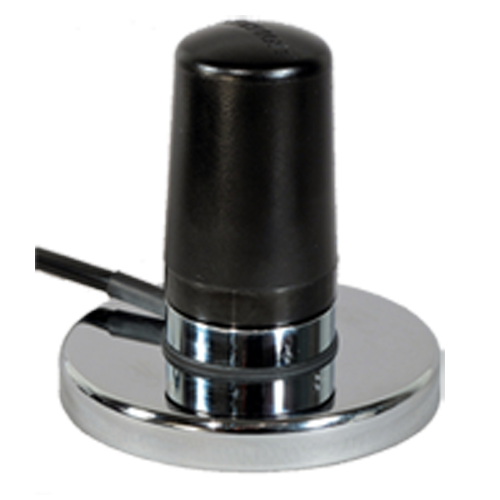

40688G-93

Remote Antenna Kit, (Magnetic Mount)

Features

  • 7-band NMO-mount antenna, with 12′ ATX195-type coax cable and reverse-polarity SMA connector

  • Magnetic mount included; designed for temporary install

  • Operates on appropriate frequency bands for 3800 and Universal Gateways

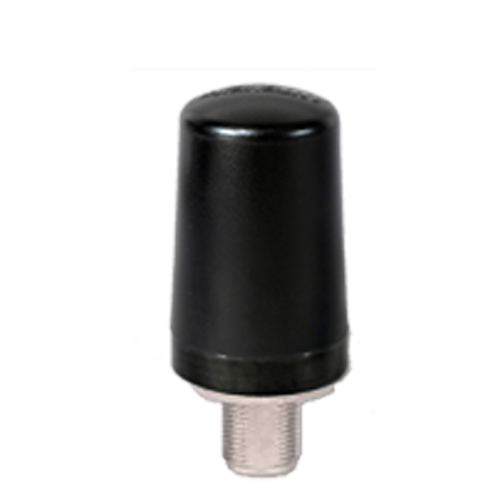

40688G-96

Remote Antenna Kit, (Permanent Install)

Features

    • 7-band N-mount antenna, with 17′ ATX195-type coax cable and reverse-polarity SMA connector

    • N-female connector; designed for permanent install

    • Operates on appropriate frequency bands for 3800 and Universal Gateways

WIRELESS System - DC 9900 Series

HEADSET - Series & Model

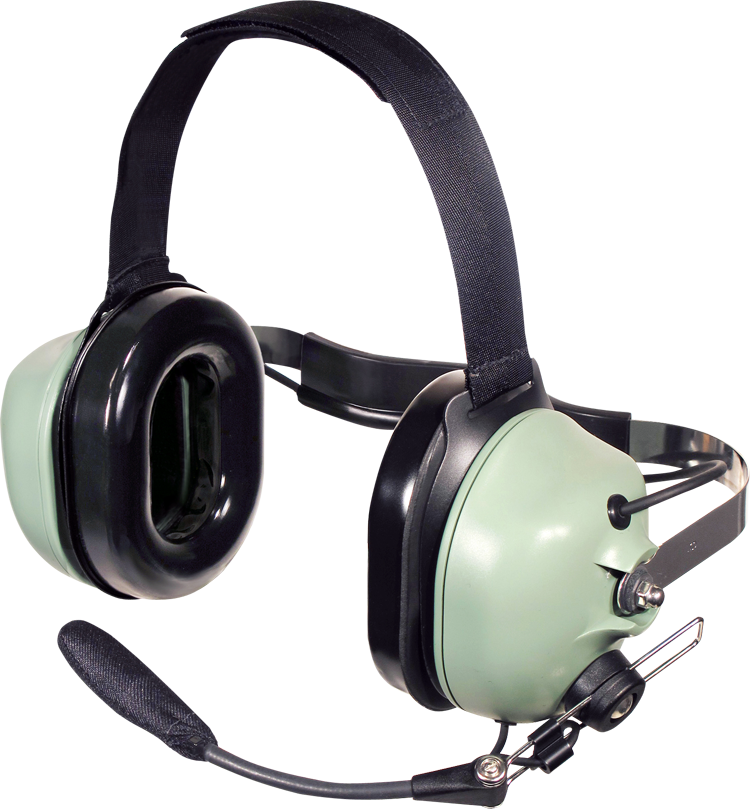

DC - 9940

H9940 / PN – 40991G-01

Headset-Mic, Behind-the-Head, Dual-Ear

Dual-ear, behind-the-head style for use in high-noise environments. Provides maximum comfort and clear, reliable communication.

  • Designed for use under protective headgear
  • Rugged construction, all hardware mobile-grade stainless steel
  • Dynamic earphones with stainless steel retainers
  • M-2 dynamic microphone, water-resistant protection and superlative noise cancelling
  • Hybrid wire-flex boom for precise mic placement
  • Dual-volume control on domes for preferred listening level
  • Undercut, comfort-gel ear seals
  • Adjustable overhead support assembly
  • Certified NRR: 23 dB

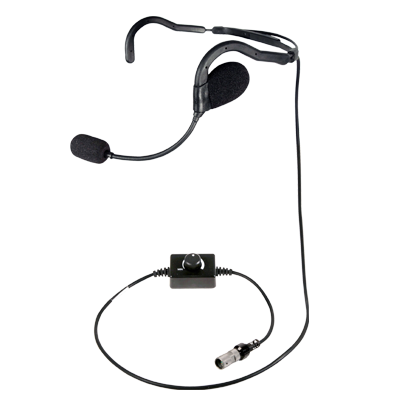

DC - 9975

H9975 / PN – 41093G-01

  • Singe Ear, behind-the-head style, designed for use under protective headgear. For use In low-noise environments where distance and/or proximity make it difficult to communicate, but hearing protection is not required.

      • Effective communication in demanding environments

      • Ideal for work areas with noise levels below 85dB

      • 150 ohm dynamic noise-cancelling microphone

      • Rugged, flexible wire microphone boom for perfect microphone positioning

      • Dynamic earphone, encapsulated on headset frame

      • In-line, water-tight volume control for variable gain settings

      • Adjustable rear nape support assembly for secure fit

      • Comfortable ear hangar design

      • No NRR (single-ear, ultra-light headset)

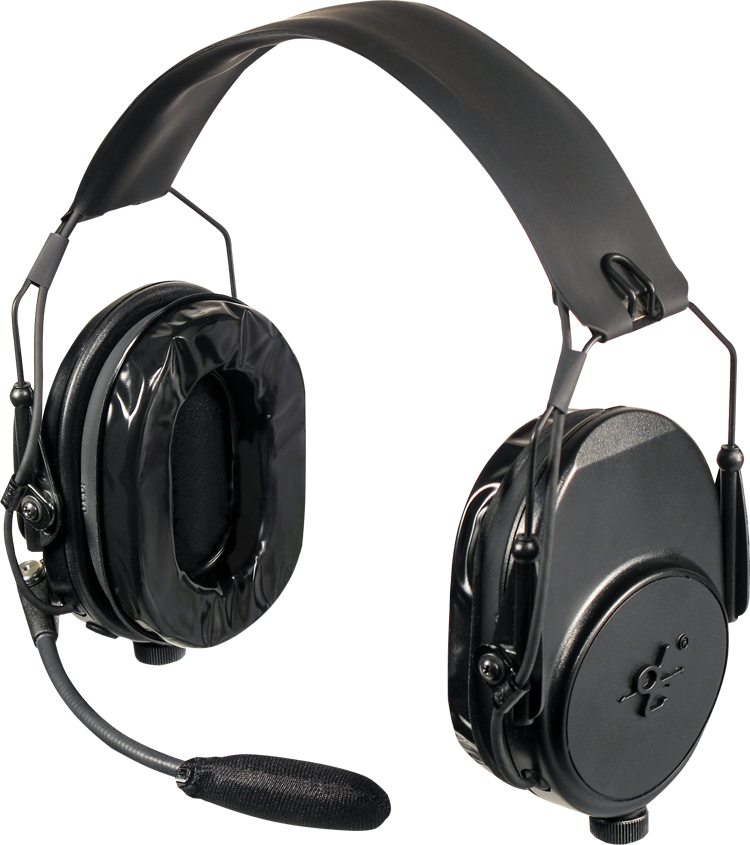

DC - H9980

H9980 / PN – 41032G-01

  • Headset-Mic Under-Helmet

    Dual ear, behind-the-head style for use under ballistic helmets. Rugged reliability and crisp, clear communications.

      • Rugged construction, all hardware marine-grade stainless steel
      • Dynamic earphones with stainless steel retainers
      • M-2 dynamic microphone, water-resistant protection and superlative noise cancelling
      • Hybrid wire-flex boom for precise mic placement
      • Dual-Volume control on domes for preferred listening level, water-tight
      • Undercut, comfort-gel ear seals
      • Adjustable overhead headband assembly
      • Outstanding audio quality and clarity

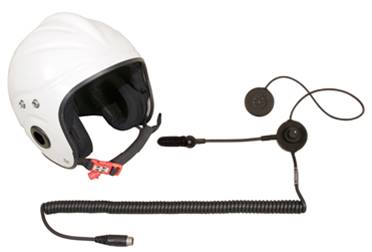

DC - H9985

H9980 / PN – 41096G-01

  • Headset Communication Kits

    Communication Kit designed specifically for use with Gecko Open-Face and Full-Face Marine afety Helmets, as well as Blueray helmets from Future Safety.

    • Crisp, clear communication in demanding environments
    • Marine-grade construction for corrosion resistance in harsh marine environments
    • Simple and quick installation in Gecko open-face or full-face type Marine Safety Helmets
    • M-2 dynamic, noise cancelling, immersion-proof microphone
    • Solid flex mic boom assembly allows for perfect microphone positioning
    • Dual dynamic earphones hermetically encapsulated in custom Gecko ear modules
    • Dual volume controls, water-tight, for variable left/right gain setting capability
    • Helmet not included; sales, service and information available from Gecko Head Gear Ltd. at www.geckoheadgear.com, and from Future Safety at www.future-safety.com, respectively.

WIRELESS - Component & Support

U 9 9 1 0 - B S W

U9910 – BSW / PN – 40992G-01

    • Hands-free, full duplex intercom via system Gateway
    • Range of up to 300 feet (line-of-sight) to and from the Gateway
    • Once linked to a Gateway, automatically reconnects on each power-up until purged from system (“strong link”)
    • Up to 4 Belt Stations can be connected to the system Gateway
    • Marine-grade, water-tight enclosure and components
    • Audible voice prompts for link/purge status, out-of-range, low battery
    • Easily accessible battery compartment with captive thumb screw
    • Powered by Li-Polymer battery (24 hours continual usage), easily removed for charging (3-4 hours) (not included; must be purchased separately)
    • VOX control with proprietary “helper” tone, assists in ideal VOX setting
    • Large PTT for link, radio PTT, VOX override
    • Power button with LED indicator for visual status of link, PTT and battery charge
    • Military-grade, twist-lock headset connector
    • Rubberized outer skin, black
    • 360-degree rotational belt clip

U 9 9 1 3 - B S W

U9913 – BSW / PN – 40992G-07

    • Same as U9910-BSW, except no PTT transmit capability outside the intercom (no radio transmit)
    • Hands-free, full duplex intercom via system Gateway
    • Range of up to 300 feet (line-of-sight) to and from the Gateway
    • Once linked to a Gateway, automatically reconnects on each power-up until purged from system (“strong link”)
    • Up to 4 Belt Stations can be connected to the system Gateway
    • Marine-grade, water-tight enclosure and components
    • Audible voice prompts for link/purge status, out-of-range, low battery
    • Easily accessible battery compartment with captive thumb screw
    • Powered by Li-Polymer battery (24 hours continual usage), easily removed for charging (3-4 hours) (not included; must be purchased separately)
    • VOX control with proprietary “helper” tone, assists in ideal VOX setting
    • Large PTT for link and VOX override
    • Power button with LED indicator for visual status of link, PTT and battery charge
    • Military-grade, twist-lock headset connector
    • Rubberized outer skin, hi-visibility yellow
    • 360-degree rotational belt clip

U 9 9 2 0 - G P B

U9925 – GEM/ PN – 40995G-03

Gateway Expansion Module

    • Interface for up to four Wireless Gateways (U9922-G38 or EU version)
    • Eliminates the need for a wired system component
    • The U9925-GEM is fully optimized to handle the power requirements of multiple wireless gateways, eliminating the potential for system noise and performance degradation
    • Weather-resistant enclosure
    • Water-tight, marine-grade connector assemblies
    • Power connector for C98-20PW power cord

CORD ASSEMBLIES

C99-20CX

C99-20CX

Interface Cord

U9921-GUV Interface

C99-20LL

C99-20LL

Interface Cord

U9921-GUV Interface

C99-20MS

C99-20MS

Interface Cord

U9921-GUV Interface;

U9922-G38 Interface;

U9925-GEM Module

BATTERIES/ CHARGERS

40688G-90

Battery

  • Li-Polymer battery pack

  • 3.7V nominal voltage

A99-14CRG

Charging Unit, 4-Bay

C99-14AC2 (230VAC)

Battery Charger Power Supply Cord Kit Components:

Power Cord (6.5 ft/2 m)

ANTENNA

40688G-92

Whip Antenna



Features

  • One each included with U9922-G38 & U9921-GUV

  • 7-band blade-style antenna, hinged, with reverse-polarity SMA connector

  • Operates on appropriate frequency bands for 3800 and Universal Gateways

40688G-93

Remote Antenna Kit, (Magnetic Mount)

Features

  • 7-band NMO-mount antenna, with 12′ ATX195-type coax cable and reverse-polarity SMA connector

  • Magnetic mount included; designed for temporary install

  • Operates on appropriate frequency bands for 3800 and Universal Gateways

40688G-96

Remote Antenna Kit, (Permanent Install)

Features

    • 7-band N-mount antenna, with 17′ ATX195-type coax cable and reverse-polarity SMA connector

    • N-female connector; designed for permanent install

    • Operates on appropriate frequency bands for 3800 and Universal Gateways

Spare Part, & Support Center

Detail David Clark SPARE-PART, disini
Support & Service, disini
