HELICOPTER APPLICATIONS

HELICOPTER

PASSIVE & ENC

HELICOPTER HEADSETS

HELICOPER Applications

David Clark Company menawarkan rangkaian headset helikopter terlengkap untuk pilot komersial di industri ini. Tersedia model peredam kebisingan Pasif dan peredam kebisingan Elektronik (ENC). Headset kami dirancang untuk tahan terhadap kerasnya kokpit helikopter, sekaligus memberikan kenyamanan dan kejernihan komunikasi yang luar biasa.

Headset helikopter kami memiliki semua fitur kenyamanan dan performa luar biasa dari headset penerbangan sayap tetap kami, tetapi dilengkapi dengan kabel koil panjang 5 kaki dengan colokan tunggal U-174/U

Helicopter Headset - Passive

Series & Model

h 10 - 13 H
H 10 - 13 N
h 10 - 56
h 10 - 56 N
h 10 - 60 H
h 10 - 26
H 10 - 36
10 S/ DC

Helicopter Headset - E N C

Series & Model

H 10 - 13 H X P
H 10 - 13 H X L
DC ONE - X H
H 10 - 56 H X L

HELICOPTER PASSIVE - HEADSET DEVICES

DC H10 - 56

Available in three different configurations:

H10- 56N

Models have a 5-foot extended coil cord and a single plug.

  • DC Part Number, 18283G-06



DC H10 – 56/ PN – 18283G-02

    • Super-soft head pad
    • Larger, yet lighter, Comfort Gel, undercut ear seals
    • Hinged wire boom with the M-101 amplified dynamic microphone
    • Conforms to MIL-M-27291A
    • Coil Cord (5′ extended) with U-174/U Plug
    • Molded cords made to exceptional pull and flex standards.
    • 5-Year Warranty, Made in USA
    • 5-foot extended coil cord with U-174/U single plug
    • FAA TSO Approved C57b, C58a
    • Exceeds RTCA/DO-214 Standards
    • Weight (without cord assembly): 20 oz.
    • Certified Noise Reduction Rating – 27 dB

DC H10 - 60H

DC H10- 60H/ PN – 40128G-03

  • The H10-60H is a premium quality helicopter headset. The versatile dome jack accepts three different cord assemblies to accommodate a variety of aircraft requiring different headset plugs for unmatched versatility to meet your flying requirements.
    • Super-soft head pad
    • Larger, yet lighter, Comfort Gel, undercut ear seals
    • Headset pressure adjustment
    • Headband size adjustment
    • M-7A, advanced noise-cancelling microphone
    • Dual volume control lets you adjust the level for each ear
    • Boom guide lock
    • Exclusive, patented flex/wire boom for easy, precise microphone placement
    • Dome jack lets you select from three different cord assemblies
    • 5-Year Warranty, Made in USA
    • 5-foot extended coil cord with U-174/U /U single plug
    • FAA TSO Approved C57b, C58a
    • Exceeds RTCA/DO-214 Standards
    • Weight (without cord assembly): 22 oz.
    • Certified Noise Reduction Rating – 23 dB

DC H10 - 13H

Available in three different configurations:

H10-13N

Is the H10-13H, terminated with NATO-type plug

PN – 40411G-12



DC H10-13H/ PN-40411G-02

  • Expanded, super-soft, double foam head pad
  • Larger, yet lighter, Comfort Gel, undercut ear seals
  • Reduced headband force
  • Universal flex boom for perfect microphone placement
  • Exclusive M-7A, the most advanced noise-cancelling microphone available
  • Low-profile volume control knob with detent settings
  • Molded cord assembly made to exceptional pull and flex standards
  • 5-Year Warranty, Made in USA
  • 5-foot extended coil cord
  • FAA TSO Approved C57b, C58a
  • Exceeds RTCA/DO-214 Standards
  • Weight (without cord assembly): 16.5 oz.
  • Certified Noise Reduction Rating – 23 dB

DC H10 - 36

DC H10- 36/ PN- 12508G-20

    • The H10-36 provides pilots with excellent performance and comfort in a value-priced helicopter headset.Super-soft head pad
    • Larger, yet lighter, Comfort Gel, undercut ear seals
    • Wire boom for easy mic placement
    • Our “Best Value” Headset
    • M-7/DC microphone, the best Amplified Dynamic microphone on the market
    • Molded cord assembly made to exceptional pull and flex standards
    • 5-Year Warranty, Made in USA
    • 5-foot extended coil cord with U-174/U single plug
    • FAA TSO Approved C57b, C58a
    • Exceeds RTCA/DO-214 Standards
    • Weight (without cord assembly): 20 oz.
    • Certified Noise Reduction Rating – 24 dB

DC H10 - 26

Model H10-26/ PN- 40074G-02

  • The H10-26 headset provides superior value, comfort and performance.
    • Super-soft head pad
    • Larger, yet lighter, Comfort Gel, undercut ear seals
    • M-7A, advanced noise-cancelling microphone
    • Flex boom assembly can be adjusted for perfect microphone placement
    • Low-profile volume control knob with detent settings
    • 5-Year Warranty, Made in USA
    • 5-foot extended coil cord with U-174/U single plug
    • FAA TSO Approved C57b, C58a Exceeds RTCA/DO-214 Standards
    • Weight (without cord assembly): 19 oz.
    • Certified Noise Reduction Rating – 24 dB

10S / DC

10 S/DC  / PN – 12416G-18

  • Listen-Only, Passenger Headset Ideal for Tour Operators
    • Hi-fidelity stereo output
    • Surround-the-ear, undercut, Comfort-Gel ear seals
    • Super-soft, double foam head pad
    • Dual volume controls
    • 6-ft. extended coil cord terminated with commonly used 1/4 stereo plug
    • Noise Reduction Rating 23 dB provides clear, precise reception

HELICOPTER ENC - HEADSET DEVICES

DC ONE-XH

DC ONE -XH / PN 43102G-06

  • The newest addition to our industry-leading line of helicopter headsets – the DC ONE-XH brings extraordinary performance, durability and lightweight comfort to helicopter pilots. Quiet and comfortable, even in very noisy helicopters.
    • 5-foot extended coil cord with U-174/U plug
    • High-performance, electret microphone with enhanced noise-cancelling
    • Hybrid Electronic Noise Cancellation with advanced feed-forward and feed-back technology provides best-in-class active noise reduction
    • Digital Signal Processing (DSP) ensures high-fidelity audio for superior communications and music listening
    • Bluetooth® wireless technology provides seamless integration for connecting to cell phones, MP3, tablets or other smart devices
    • Stereo/mono switch ─ compatible with all aircraft audio panel configurations
    • Rugged yet lightweight alloy headband and suspension system is adjustable for personalized fit
    • Low profile, Outlast® fabric head pad with vented design absorbs excess heat to keep you cool
      and eliminates ‘hot spots’
    • Over-the-ear, leatherette ear seals with slow recovery foam cradle the ears in comfort and provide
      a snug, secure seal
    • Compact, in-line control module with backlit, touch-key user interface controls On/Off, Bluetooth® wireless
      technology and volume control
    • Control module powered by two (2) AA batteries for up to 50 hours of use
    • Collapsible, folding design for compact storage in David Clark headset bag (included)
    • Weight (without cord assembly) 12.3 oz.
    • FAA TSO-C139a Approved
    • Five-year warranty and 30-Day, money back guarantee, backed by industry leading customer service

DC H10 - 56 HXL

DC H10 – 56 HXL/ PN – 40614G-02

    • The H10-56HXL is extremely effective at blocking out low-frequency sound associated with helicopters. Modular, battery-powered portability means you can use the same headset in a variety of helicopters. Built to withstand the rigors of commercial use in helicopter cockpits.
      • Super-soft head pad
      • Larger, yet lighter, undercut, Comfort Gel, ear seals
      • Battery Power Module – One 9 volt battery for up to 25 hours of operation
      • Pilot selectable Automatic Shut-Off feature
      • Five-foot (extended) coil cord terminating with a 10-pin quick release connector
      • Coiled cord assembly connects Battery Power Module to panel intercom/radio
      • Dual volume controls let you adjust the level for each ear
      • Exclusive, patented flex/wire boom for easy, precise microphone placement
      • Weight (without cord assembly): 22 oz.

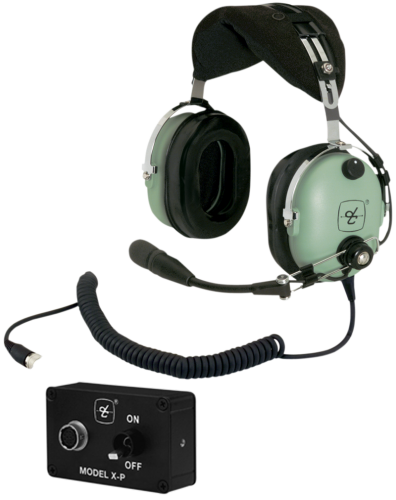

DC H10 - 13HXP

DC H10-13HXP/ PN 40600G-04



  • for utilizing the aircraft’s power source. Comes with 5 ft. (extended) coil cord assembly, panel-mount module with mating headset connector and On/Off toggle switch.
    • Super-soft head pad
    • Larger, yet lighter, undercut, Comfort Gel, ear seals
    • Coiled cord assembly connects to Permanent Panel-Mount Module – utilizes aircraft power supply
    • Pilot selectable Automatic Shut-Off feature
    • Five-foot (extended) coil cord
    • Same headset can be used with optional panel mount
    • Weight (without cord assembly): 18 oz.
    • Exclusive, patented flex/wire boom for easy, precise microphone placement
    • Reduced headband pressure
    • M-7A noise-cancelling electret microphone provides clear, crisp transmission
    • Stereo compatible for use with stereo intercom and cabin entertainment systems

DC H10 - 13HXL

DC H10-13HXL/ PN 40600G-03



  • The H10-13HXL gives helicopter pilots all the comfort, durability and performance they need, with the added benefit of modular ENC portability in a classic headset design. Comes with 5 ft. (extended) coil cord assembly with mating battery connector and Panel-Intercom plug.
    • Super-soft head pad
    • Larger, yet lighter, undercut, Comfort Gel, ear seals
    • Battery Power Module – One 9 volt battery for up to 25 hours of operation
    • Pilot selectable Automatic Shut-Off feature
    • Five-foot (extended) coil cord
    • Coiled cord assembly connects Battery Power Module to panel intercom/radio
    • Same headset can be used with optional panel mount
    • Weight (without cord assembly): 18 oz.
    • Exclusive, patented flex/wire boom for easy, precise microphone placement
    • Reduced headband pressure
    • M-7A noise-cancelling electret microphone provides clear, crisp transmission
    • Stereo compatible for use with stereo intercom and cabin entertainment systems
