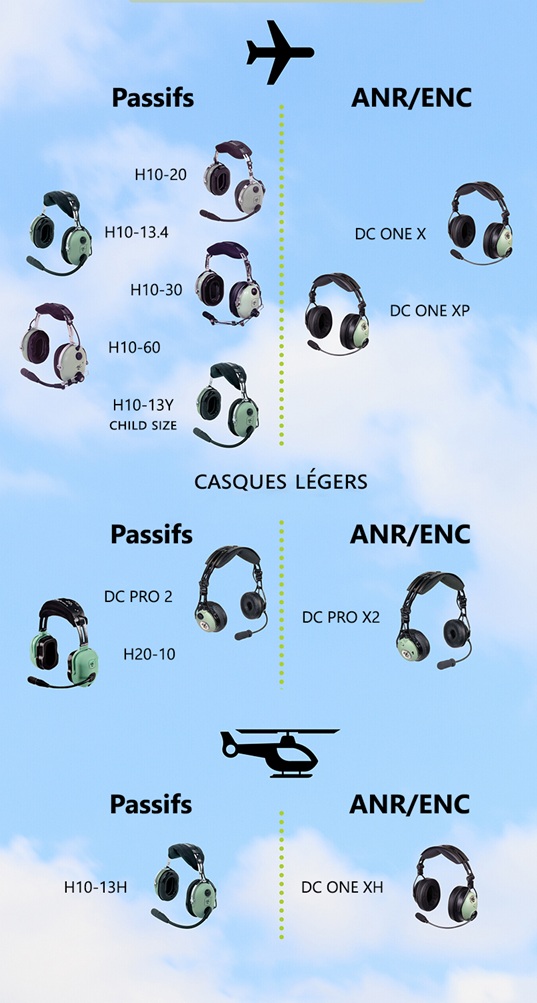

GENERAL AVIATION
FIXED WING – PASSIVE & ENC
GENERAL AVIATION





FIXED WING - PASSIVE



Series & Model
FIXED WING - ENC



Series & Model
FIXED WING PASSIVE - HEADSET DEVICES

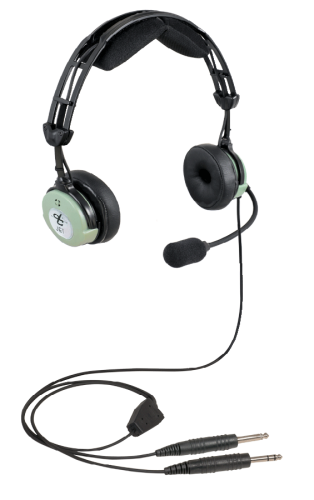

DC JET, PASSIVE

DC JET, dual GA plug
DC JET Passive, dual GA Plug/ PN 43108G-01
- Passive, Noise-Attenuating headset, rest-on-ear design
- Ultra-lightweight, yet durable headband and suspension system (weighs just 4.5 ounces)
- Full flex boom provides precise, ‘one-touch’ mic positioning
- High-performance, noise-cancelling, electret microphone for clear, crisp communication clarity
- Low profile, Outlast®️ fabric head pad with vented design absorbs excess heat buildup to keep you cool and comfortable while eliminating ‘hot spots’
- Rest-on-ear, leatherette ear seals with slow recovery foam cradle the ears in comfort and provide a snug fit
- FAA TSO-C139a Approved

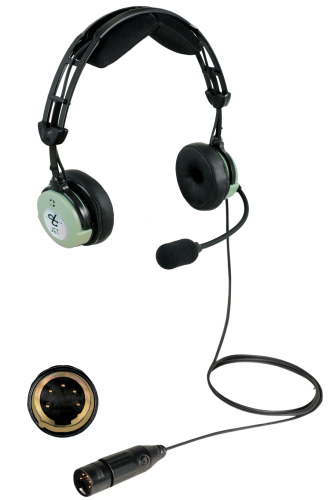

DC JET, 5pin XLR
DC JET Passive, dual GA Plug/ PN 43108G-01
- Passive, Noise-Attenuating headset, rest-on-ear design
- Ultra-lightweight, yet durable headband and suspension system (weighs just 4.5 ounces)
- Full flex boom provides precise, ‘one-touch’ mic positioning
- High-performance, noise-cancelling, electret microphone for clear, crisp communication clarity
- Low profile, Outlast®️ fabric head pad with vented design absorbs excess heat buildup to keep you cool and comfortable while eliminating ‘hot spots’
- Rest-on-ear, leatherette ear seals with slow recovery foam cradle the ears in comfort and provide a snug fit
- FAA TSO-C139a Approved
DC PRO-2, PASSIVE

DC PRO-2
DC PRO-2/ Part Number, 43108G-02
- Passive Noise-Attenuating headset, rest-on-ear design
- Ultra-lightweight, yet durable alloy headband and suspension system (weighs just 4.5 ounces)
- Full flex boom provides precise, ‘one-touch’ mic positioning
- High-performance, noise-cancelling electret microphone for clear, crisp communication clarity
- Low profile Outlast®️ fabric head pad with vented design absorbs excess heat buildup to keep you cool and comfortable while eliminating ‘hot spots’
- Rest-on-ear, leatherette ear seals with slow recovery foam cradle the ears in comfort & provide a snug fit
- FAA TSO-C139a Approved

DC PRO-2, Single Ear
DC PRO-2, single ear/ PN 43106G-06

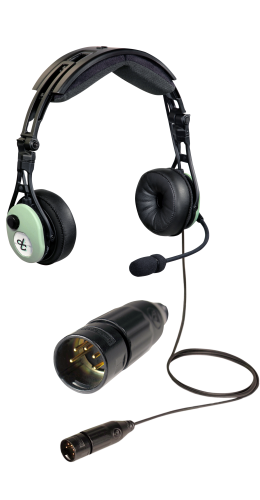

DC PRO-2, XLR
DC PRO-2, XLR/ PN 43106G-02
- 5-ft. straight cord with 5-pin XLR plug
- Extremely light, yet rugged magnesium alloy headband and suspension
- Dual volume controls provide independent listening levels in each ear
- Adjustable suspension assembly for personalized fit
- Low profile, Outlast® fabric head pad with vented design absorbs excess heat to keep you cool
and eliminates ‘hot spots’ - Ultra-soft, Dura-Stitched, leatherette ear seals with supra-aural (rest on ear) design
provide personalized fit and eliminate heat buildup for greater comfort - Swivel hinge stirrups for a secure, comfortable fit
- High-performance, electret microphone for enhanced noise cancelling
- Full flex boom for precise microphone placement
- Collapsible design for compact storage in David Clark branded headset bag (included)
- Five-year warranty, Made in USA
- Weight (without cord assembly) 8oz.
DC H10-60, PASSIVE

DC H10 - 60
Available in three different configurations:
H10- 60
5 Ft, straight cord, dual plugs.
PN – 40128G-01
H10- 60 C
5 ft coil cord, dual plug,
dual plugs. (Inline Stereo/Mono switch).
PN – 40128G-02
H10-60 H
The H10-60 helicopter pilots.
5 Ft, extended coil cord, single plug.
PN – 40128G-03
DC H10- 60
DC H10-30, PASSIVE

DC H10 - 30
Available in three different configurations:
H10- 30
Standard model straight cord, dual plugs
PN – 12508G-17
H10-36
Helicopter version of H10-30A
5 Ft Coil cord, single plugs.
PN – 12508G-20
DC H10- 30
DC H10-13, PASSIVE

DC H10 - 13.4
Available in three different configurations:
H10-13.4
5 Ft, straight cord, dual plugs fixed wing aircraft.
PN – 40411G-01
H10-13 S
A stereo version of the H10-13.4, 5 ft, straight cord,
dual plugs. (Inline Stereo/Mono switch).
PN – 40422G-01
H10-13 H
The H10-13.4 for helicopter pilots.
5 Ft, extended coil cord, single plug.
PN – 40411G-02
H10-13 Y
younger pilots. This small version H10-13.
PN – 40411G-04
H10-13 N
Terminated with NATO-Type plug.
PN – 40411G-12
DC H10-13.4
DC H10-20, PASSIVE

DC H10 - 20
Available in three different configurations:
H10-20 (NSN 5965-01-446-1475)
Model standar, colokan ganda.
DC – 40074G-01
H10-21 (NSN 5965-01-446-1479)
kabel 5 feet, colokan ganda.
DC – 40074G-03
H10-26 (NSN 5965-01-446-1483)
Versi helikopter, kabel 5 feet, satu colokan.
DC – 40074G-02
Model H10-20
- Jika Anda menginginkan performa maksimal dan keandalan dengan harga yang sangat terjangkau, H10-20 adalah pilihan yang tepat. Dirancang dengan fitur-fitur kenyamanan yang diinginkan para pilot, termasuk bantalan kepala busa super lembut, ikat kepala yang dapat disesuaikan, dan segel telinga Comfort Gel.
- Bantalan kepala super lembut
- Lebih besar, namun lebih ringan, undercut, Comfort Gel, ear seal
- Rakitan boom fleksibel dapat disesuaikan untuk penempatan mikrofon yang sempurna
- M-7A, mikrofon peredam bising canggih
- Kenop kontrol volume profil rendah dengan pengaturan detent
- Garansi 5 Tahun, Buatan AS
- FAA TSO Menyetujui C-139
- Melebihi Standar RTCA/DO-214
- Berat (tanpa rakitan kabel): 19 ons.
- Peringkat Pengurangan Kebisingan Bersertifikat – 24dB

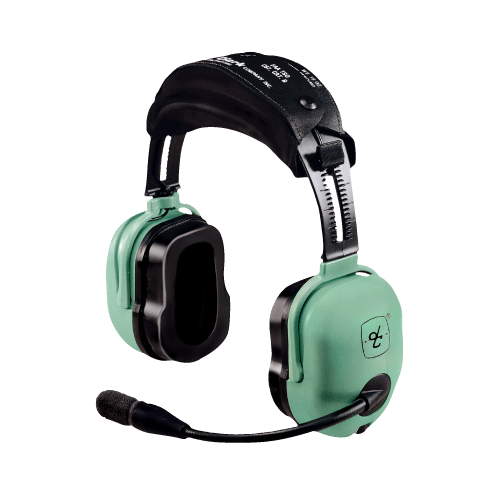

DC H20-10, PASSIVE

DC H20-10
Available in two different configurations:
H20-10 (NSN 5965-01-447-6438)
DC Part Number – 40495G-01
H20-10S (NSN 5965-01-447-6470)
Stereo version with inline stereo/mono switch.
DC Part Number – 40495G-09
H20-10
- H20-10 terbuat dari material komposit canggih yang ringan, namun sangat tahan lama. Fitur kenyamanan khusus yang unik meliputi segel telinga berkontur berisi gel dan sistem suspensi ikat kepala yang telah dipatenkan.
- Terbuat dari Bahan Komposit Canggih, Sistem Kenyamanan Kustom Eksklusif, Sangat ringan
- Suspensi bantalan kepala yang dipatenkan memberikan kenyamanan seperti bantal
- Desain ikat kepala khusus menopang kepala Anda secukupnya untuk menghalangi kebisingan
- Penutup telinga gel berkontur menyesuaikan dengan bentuk kepala Anda dengan lembut
- Tidak ada kabel overhead yang terbuka
- Eksklusif M7-A, mikrofon peredam bising tercanggih yang tersedia
- Tali yang dibentuk dengan standar tarikan dan kelenturan yang luar biasa.
- Garansi 5 Tahun, Buatan AS
- FAA TSO Menyetujui C-139
- Melebihi Standar RTCA/DO-214
- Berat (tanpa rakitan kabel): 19 ons.
- Peringkat Pengurangan Kebisingan Bersertifikat – 22dB
FIXED WING ENC - HEADSET DEVICES
DC JET-X, ENC
DC JET X, ENC

DC JET-X, ENC/ PN 43107G-01
Ultra-lightweight Comfort for Commercial Pilots, Standard Aviation Dual Plugs
- Features standard aviation dual plugs
- Excellent ANR performance with David Clark Electronic Noise Cancelling (ENC) technology provides best-in-class active noise reduction
- Ultra-light (4.5 ounces) polymer headband and suspension system
- Fully adjustable suspension assembly for personalized fit and comfort
- Outlast® technology heat-absorbing head pad with breathable, vented design
- Plush, Rest-On-Ear leatherette ear seals with slow recovery foam rest comfortably and securely on the ears for enhanced comfort
- Digital Signal Processing (DSP) provides ANR and high fidelity audio for clear, crisp communication
- M-5B Electret Microphone with enhanced noise-cancelling is unmatched for communication clarity that is second to none
- Full flex boom provides precise, ‘one-touch’ microphone placement
- Compact, ON/OFF controller powered by one (1) ‘AA’ battery for up to 50 hours of continuous use
- Enhanced Auto-Shutoff feature virtually eliminates accidental loss of battery power should controller inadvertently be left ON.
- Controller contains USB-C interface for powering the headset via USB-C cable (sold separately); charges the headset (if rechargeable battery is installed)
- David Clark headset bag included
- Weight (without cord) 4.5 ounces
- FAA TSO-C139a Approved
- Three-year warranty backed by David Clark extraordinary customer service and support
DC JET - X, 5pin XLR

DC JET-X, 5 Pin XLR/ PN 43107G-02
Aircraft powered model with 5-Pin XLR plug
- Features 5-Pin XLR plug (Aircraft Powered)
- Excellent ANR performance with David Clark Electronic Noise Cancelling (ENC) technology provides best-in-class active reduction for quiet flights
- Ultra-light (4.5 ounces) polymer headband and suspension system
- Fully adjustable suspension assembly for personalized fit and comfort
- Outlast® technology, heat-absorbing head pad with breathable, vented design
- Plush, Rest-On-Ear leatherette ear seals with memory foam rest comfortably and securely on the ears to enhance comfort
- Digital Signal Processing (DSP) provides ANR and high-fidelity audio for clear, crisp communications
- M5-B Electret Microphone with enhanced noise-cancelling is unmatched for communication clarity that is second to none
- Full flex boom provides precise, one-touch’ microphone placement
- Compact, ON/OFF controller powered by one (1) ‘AA’ battery for up to 50 hours of continuous use
- Enhanced Auto-Shutoff feature virtually eliminates accidental loss of battery power
- Controller contains USB-C Interface for powering the headset via USB-C cable (sold separately); charges the headset (if rechargeable battery is installed)
- David Clark headset bag included
- Weight (without cord) 4.5 ounces
- FAA TSO-C139a Approved
- Three-year warranty backed by David Clark extraordinary customer service and support
DC JET - X, 6 pin LEMO

DC JET-X, 6 Pin LEMO/ PN 43107G-03
Aircraft powered model with 6-Pin LEMO
- Features 6-Pin LEMO plug (Aircraft Powered)
- Excellent ANR performance with David Clark Electronic Noise Cancelling (ENC)
- Ultra-light (4.5 ounces) polymer headband and suspension system
- Fully adjustable suspension assembly for personalized fit and comfort
- Outlast® technology, heat absorbing head pad with breathable, vented design
- Plush, Rest-On-Ear leatherette ear seals with memory foam rest comfortably and securely on the ears to enhance comfort
- Digital Signal Processing (DSP) provides ANR and high fidelity audio for clear, crisp communications
- M5-B Electret Microphone with enhanced noise-cancelling is for communication clarity that is second to none
- Full flex boom provides precise, ‘one-touch’ microphone placement
- Compact, ON/OFF controller powered by one (1) ‘AA’ battery for up to 50 hours of continuous use
- Enhanced Auto-Shutoff feature virtually eliminates accidental loss of battery power
- Controller contains USB-C Interface for powering the headset via USB-C cable (sold separately); charges the headset (if rechargeable battery is installed)
- David Clark headset bag included
- Weight (without cord) 4.5 ounces
- FAA TSO-C139a Approved
- Three-year warranty backed by David Clark extraordinary customer service and support
DC PRO-X2, ENC

DC PRO-X2, ENC
DC PRO-X2/ PN: 43105G-01
Hybrid ENC Technology in a Supra Aural (Rest on Ear) Headset Design, Standard GA Dual Plugs
- Enhanced Auto-Shutoff feature virtually eliminates accidental loss of battery power
- Automatic Gain Control (AGC) for optimum ANR performance in high noise conditions
- Hybrid Electronic Noise Cancellation with advanced feed-forward and feed-back technology provides best-in-class active noise reduction
- Dual voice coil drivers provide fail safe operation to ensure full communication in the event of battery loss or system failure
- Digital Signal Processing (DSP) ensures high-fidelity audio for superior communications and music listening
- Bluetooth® wireless technology provides seamless integration for connecting to cell phones, MP3, tablets or other personal electronic devices
- Stereo/mono switch
- High performance, electret microphone with enhanced noise cancelling
- Rugged yet lightweight magnesium alloy headband and suspension is adjustable for personalized fit
- Low profile, Outlast® fabric head pad with vented design absorbs excess heat to keep you cool
and eliminates ‘hot spots’ - Dura-Stitched, leatherette ear seals with slow recovery foam cradle the ears in comfort
and eliminate heat buildup - Compact, in-line control module with backlit, touch key user interface controls On/Off, Bluetooth® wireless technology and volume control
- Control module powered by two (2) AA batteries for up to 50 hours of use
- Collapsible, folding design for compact storage in David Clark headset bag (included)
- Weight (without cord assembly) 7.5 oz.
- Five-year warranty
- FAA TSO C139a Approved

DC PRO-X2, XLR
DC PRO-X2, Aircraft Powered, XLR/ PN: 43105G-04
Supra Aural, Aircraft Powered, Panel Mount with 5-Pin XLR Connector, Hybrid ENC Headset
- Panel mount with 5-pin XLR connector. Power for the Electronic Noise Cancelling ANR technology feature provided from aircraft power supply. Batteries (included) are required to power Bluetooth audio and cell phone features when headset is disconnected from the aircraft power supply.
- Headset will automatically turn on when external power is applied, without using the Power Button on the Control Module
- Enhanced Auto-Shutoff feature virtually eliminates accidental loss of battery power
- Automatic Gain Control (AGC) for optimum ANR performance in high noise conditions
- Hybrid Electronic Noise Cancellation with advanced feed-forward and feed-back technology provides best-in-class active noise reduction
- Dual voice coil drivers provide fail safe operation to ensure full communication in the event of battery loss or system failure
- Digital Signal Processing (DSP) ensures high-fidelity audio for superior communications and music listening
- Bluetooth® wireless technology provides seamless integration for connecting to cell phones, MP3, tablets or other personal electronic devices
- Stereo/mono switch
- High performance, electret microphone with enhanced noise cancelling
- Rugged yet lightweight magnesium alloy headband and suspension is adjustable for personalized fit
- Low profile Outlast® fabric head pad with vented design absorbs excess heat buildup to keep you cool
and eliminates ‘hot spots’ - Dura-Stitched, leatherette ear seals with slow recovery foam cradle the ears in comfort
and eliminate heat buildup - Compact, in-line control module with backlit, touch key user interface controls On/Off, Bluetooth® wireless technology and volume control
- Collapsible, folding design for compact storage in David Clark headset bag (included)
- Weight (without cord assembly) 7.5 oz.
- Five-year warranty
- FAA TSO-C139a Approved

DC PRO-X2, 6 Pin, ENC
DC PRO-X2, Aircraft Powered, 6 Pin connector/ PN: 43105G-02
Supra Aural, Aircraft Powered, Panel Mount 6-Pin Connector, Hybrid ENC Headset
- Panel mount with 6-pin connector.Power for the Electronic Noise Cancelling ANR technology feature provided fromaircraft power supply. Batteries (included) are required to power Bluetoothaudio and cell phone features when headset is disconnected from the aircraftpower supply.
- Headset will automatically turn onwhen external power is applied, without using the Power Button on the ControlModule
- Enhanced Auto-Shutoff featurevirtually eliminates accidental loss of battery power
- Automatic Gain Control (AGC) foroptimum ANR performance in high noise conditions
- Hybrid Electronic NoiseCancellation with advanced feed-forward and feed-back technology providesbest-in-class active noise reduction
- Dual voice coil drivers providefail safe operation to ensure full communication in the event of battery lossor system failure
- Digital Signal Processing (DSP)ensures high-fidelity audio for superior communications and music listening
- Bluetooth® wireless technologyprovides seamless integration for connecting to cell phones, MP3, tablets orother personal electronic devices
- Stereo/mono switch
- High performance, electretmicrophone with enhanced noise cancelling
- Rugged yet lightweight magnesiumalloy headband and suspension is adjustable for personalized fit
- Low profile, Outlast® fabric headpad with vented design absorbs excess heat to keep you cool and eliminates ‘hotspots’ [ORDER]
- Dura-Stitched, leatherette earseals with slow recovery foam cradle the ears in comfort and eliminate heatbuildup [ORDER]
- Compact, in-line control modulewith backlit, touch key user interface controls On/Off, Bluetooth® wirelesstechnology and volume control
- Control module powered by two (2)AA batteries for up to 50 hours of use
- Collapsible, folding design forcompact storage in David Clark headset bag (included)
- Weight (without cord assembly) 7.5oz.
- Five-year warranty
- FAA TSO C139a Approved
DC ONE-X, ENC

DC ONE-X, ENC
DC ONE -X, ENC/ PN 43102G-01
Hybrid ENC technology with Bluetooth wireless and advanced comfort features
- Hybrid Electronic Noise Cancellation with advanced feed-forward and feed-back technology provides best-in-class active noise reduction
- Digital Signal Processing (DSP) ensures high-fidelity audio for superior communications and music listening
- Bluetooth® wireless technology provides seamless integration for connecting to cell phones, MP3, tablets or other smart devices
- Stereo/mono switch compatible with all aircraft audio panel configurations
- High performance, electret microphone with enhanced noise cancelling
- Rugged yet lightweight alloy headband and suspension system is adjustable for personalized fit
- Low profile, Outlast® fabric head pad with vented design absorbs excess heat to keep you cool and eliminates ‘hot spots’
- Over-the-ear, leatherette ear seals with slow recovery foam cradle the ears in comfort and provide a snug, secure seal
- Compact, in-line control module with backlit, touch-key user interface controls On/Off, Bluetooth® wireless technology and volume control
- Control module powered by two (2) AA batteries for up to 50 hours of use
- Collapsible, folding design for compact storage in David Clark headset bag (included)
- Weight (without cord assembly) 12.3 oz.
- FAA TSO-C139a Approved
- 5 year warranty and 30-Day, money back guarantee, backed by industry leading customer service

DC ONE-XA, ENC
DC ONE -XA, ENC/ PN 43102G-04
The DC ONE-XA is a panel mount, aircraft-powered headset featuring a 5-pin XLR connector
- Hybrid Electronic Noise Cancellation with advanced feed-forward and feed-back technology provides best-in-class active noise reduction
- Digital Signal Processing (DSP) ensures high-fidelity audio for superior communications and music listening
- Bluetooth® wireless technology provides seamless integration for connecting to cell phones, MP3, tablets or other smart devices
- Stereo/mono switch compatible with all aircraft audio panel configurations
- High performance, electret microphone with enhanced noise cancelling
- Rugged yet lightweight alloy headband and suspension system is adjustable for personalized fit
- Low profile, Outlast® fabric head pad with vented design absorbs excess heat to keep you cool and eliminates ‘hot spots’
- Over-the-ear, leatherette ear seals with slow recovery foam cradle the ears in comfort and provide asnug, secure seal
- Compact, in-line control module with backlit, touch-key user interface controls On/Off, Bluetooth® wireless technology and volume control
- Control module powered by two (2) AA batteries for up to 50 hours of use
- Collapsible, folding design for compact storage in David Clark headset bag (included)
- Weight (without cord assembly) 12.3 oz.
- FAA TSO-C139a Approved

DC ONE-XP, ENC
DC ONE -XP, ENC/ PN 43102G-02
6-pin connector and Hybrid ENC technology with Bluetooth wireless and advanced comfort features
- Features 6-pin connector for plugging into aircraft panel to power Electronic Noise Cancelling
- Hybrid Electronic Noise Cancellation with advanced feed-forward and feed-back technology provides best-in-class active noise reduction
- Digital Signal Processing (DSP) ensures high-fidelity audio for superior communications and music listening
- Bluetooth® wireless technology provides seamless integration for connecting to cell phones, MP3, tablets or other smart devices
- Stereo/mono switch compatible with all aircraft audio panel configurations
- High performance, electret microphone with enhanced noise cancelling
- Rugged yet lightweight alloy headband and suspension system is adjustable for personalized fit
- Low profile, Outlast® fabric head pad with vented design absorbs excess heat to keep you cool
and eliminates ‘hot spots’ - Over-the-ear, leatherette ear seals with slow recovery foam cradle the ears in comfort and provide
a snug, secure seal - Compact, in-line control module with backlit, touch-key user interface controls On/Off, Bluetooth® wireless technology and volume control
- Control module powered by two (2) AA batteries for up to 50 hours of use
- Collapsible, folding design for compact storage in David Clark headset bag (included)
- Weight (without cord assembly) 12.3 oz.
- FAA TSO-C139a Approved
- Five-year warranty and 30-Day, money back guarantee, backed by industry leading customer service
DC H10-13X, ENC

DC H10 - 13X
Available in three different configurations:
H10-13XL
Portable ENC Technology in a Proven Headset Design
PN – 40600G-01
H10-13XP
ENC Performance in a Panel-Mount Configuration
PN – 40600G-02
H10-13 HXP
The H13-XP for helicopter pilots.
ENC Performance
PN – 40600G-04
