PUSHBACK - Ground Support Airport

Series & Model

H 3 5 3 0
C35-XX Belt Station (for H3530)
H 3 3 3 1
H 3 3 3 5

RAMP, & MAINTENANCE

Series & Model

H 3 3 1 0
H 3 3 1 2
H 3 3 1 3

WIRELESS COMMUNICATIONS

Headset - Series & Model

H 9 9 1 0
H 9 9 3 0
H 9 9 3 5

Wireless Componenet & Support

U9910 - BSW (Belt Station)
U9913 - BSW (Belt Station)
U9920 - GPB (Gateway)
Cord Assemblies
Batteries & Charger

PUSHBACK - GROUND SUPPORTS

DC - H 3 5 3 0

DC H3530 / PN – 12508G-34

  • Series 3000 Wired Headset Designed for Tug Drivers in Pushback Operations
    • Flex boom allows for perfect microphone placement
    • DC-1A noise-cancelling amplified dynamic microphone
    • Soft foam head pad with ribbed design and foam ear seals for exceptional durability and comfort
    • 30-inch straight cord with locking connector mates with C35-XX Series Belt Station (below)
    • Corrosion-proof, chrome plated, headband/stirrup Assembly
    • Certified Noise Reduction Rating (NRR): 24db

C35XX

Available in three different configurations:



C35-08 (p/n 04016G-14) , Coiled Cord, 8′ extended

C35-16 (p/n 04016G-13), Straight Cord, 16′

C35-26 (p/n 04016G-10), Coiled Cord, 26′ extended

C35-30 (p/n 04016G-11), Straight Cord, 30′

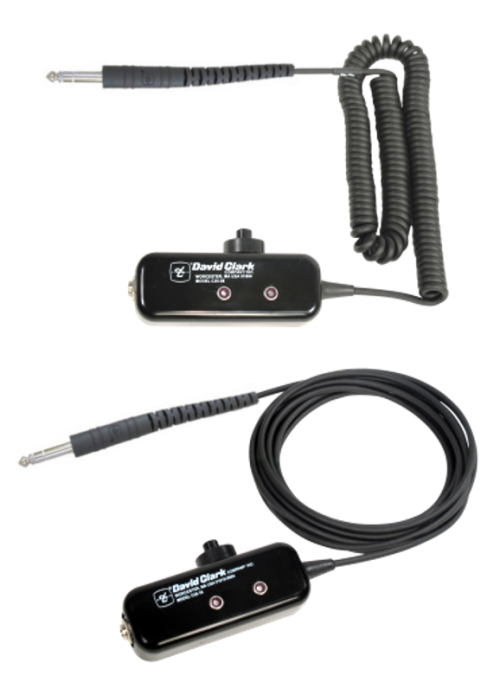

C35-XX Belt Station (C35-08 (P/N 04016G-14)

  • Interfaces the H3530 Headset to Aircraft
    • Momentary push-to-talk switch prevents background noise from interfering with communications
    • Available with either straight or coil cords in lengths from 8 to 30 feet
    • Threaded 1/4″ jack on enclosure, with 1/4″ TRS plug on end of cord assembly
    • C35-XX Series includes: C35-16 and C35-30 straight cord; C35-08 and C35-26 extended coil cord (number after dash indicates cord length in feet)

DC - H 3 3 3 1

DC H3331 / PN – 12304G-02

  • Series 3000 Headset Typically Used for Pushback and Ramp Communications
    • DC-1A noise-cancelling amplified dynamic microphone
    • Microphone PTT switch on ear dome
    • Soft foam head pad with ribbed design and foam ear seals for exceptional durability and comfort
    • Hinged wire boom for easy microphone placement on right or left side
    • 15-foot straight cord with 1/4″ TRS plug mates with C31-XX extension cords
    • Corrosion-proof, chrome plated, headband/stirrup assembly
    • Certified Noise Reduction Rating (NRR): 24db

DC - H 3 3 3 5

DC H3335 / PN – 12304G-04

  • Series 3800 Headset Typically Used for Pushback and Ramp Communications
    • DC-1A noise-cancelling amplified dynamic microphone
    • Microphone on/off switch on ear dome allows hands-free communication
    • Soft foam head pad with ribbed design and foam ear seals for exceptional durability and comfort
    • Hinged wire boom for easy microphone placement on right or left side
    • 26-foot coil cord with 1/4″ TRS plug mates with C31-XX extension cords
    • Corrosion-proof, chrome plated, headband/stirrup assembly
    • Certified Noise Reduction Rating (NRR): 24db

RAMP & MAINTENANCE

DC - H 3 3 1 0

DC H3310 / PN – 12506G-05

  • Muff-Mic Style Headset for a Variety of Maintenance and Ramp Operations
    • Noise shielded microphone with momentary push-to-talk switch, can hang loosely or be secured over mouth with support straps
    • DC-1A noise-cancelling amplified dynamic microphone
    • Soft foam head pad with ribbed design and foam ear seals for exceptional durability and comfort
    • 30-inch straight cord with 1/4″ TRS plug mates with Series C31-XX extension cords
    • Corrosion-proof, chrome-plated, headband/stirrup assembly
    • Certified Noise Reduction Rating (NRR): 26db

DC - H 3 3 1 2

Available in three different configurations:

DC H3312/ PN 12515G – 12

25-ft straight cord with 1/4″ TRS plug for extension cords



DC H3313/ PN 12515G – 14

30-ft straight cord with 1/4″ TRS plug for extension cords

mates with Series C31-XX extension cords



DC H3312 / PN – 12515G-12

  • Muff-Mic Style Headset for a Variety of Maintenance and Ramp Operations
    • Noise shielded microphone with momentary push-to-talk switch, hangs freely for periodic use
    • DC-1A noise-cancelling amplified dynamic microphone
    • Soft foam head pad with ribbed design and foam ear seals for exceptional durability and comfort
    • 25-foot straight cord with 1/4″ TRS plug eliminates need for extension cords
    • Corrosion-proof, chrome-plated, headband/stirrup assembly
    • Certified Noise Reduction Rating (NRR): 26db

    WIRELESS System - Ground Support

    HEADSET - Series & Model

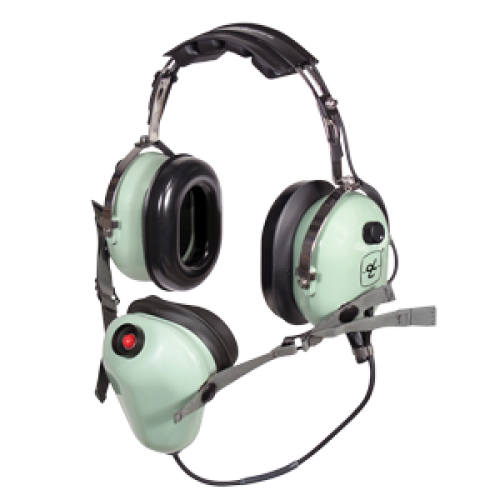

    DC - H 9 9 1 0

    H9910 / PN – 41031G-01

    • Dual-Ear, Over-The-Head style, provides maximum comfort and features mic-shield with snap/strap assembly for clear, hands-free communication in extreme high-noise environments.
      • Snap/strap assemblies secure the shielded microphone to user’s mouth for hands-free communication
      • Rugged construction, marine-grade stainless steel hardware
      • Dynamic earphones with stainless steel retainers
      • M-2H-type noise-canceling microphone, mounted in noise-attenuating mic shield with PTT override
      • Dual volume controls on domes for preferred listening level
      • Undercut, Comfort-Gel Ear Seals
      • 4-chamber, air-flow pillow headpad
      • Certified NRR: 26 dB

    DC - H 9 9 3 5

    H9935 / PN – 40990G-02

    • Dual-Ear, Over-The-Head style, with boom-mic optimized for airport ramp environments. Provides maximum comfort, noise-attenuation and clear, reliable communications.
      • Crisp, clear communication in demanding environments
      • Chrome-plated carbon steel for durability and weather resistance
      • M-2 dynamic microphone, water-resistant protection and superlative noise cancelling
      • Over-molded flex boom assembly, non-rotating, for precise microphone positioning and rugged reliability
      • Dual dynamic earphones (titanium nitride drivers) with stainless steel retainers
      • Dual volume controls, water-tight, for variable left/right gain setting capability
      • 6-foot extended coil cord with military-grade, 7-pin Belt Station connector
      • Undercut, comfort-gel ear seals provide unsurpassed comfort and enhanced noise-attenuation
      • 4-chamber, air-flow pillow head pad affords long-term comfort, eliminates “hot spots”
      • Passive noise attenuation rating: 26 dB
      • Rugged and dependable performance

    DC - H 9 9 3 0

    H9930 / PN – 40990G-02

    • DIdeal for Tug Operators, Ramp Agents and Deicing Crews
        • Rugged construction, all hardware marine-grade stainless steel
        • Dynamic earphones with stainless steel retainers
        • M-2 dynamic microphone, water-resistant protection and superlative noise cancelling
        • Hybrid wire-flex boom assembly
        • Dual volume controls on domes for preferred listening level
        • Undercut, Comfort-Gel Ear Seals
        • 4-chamber, air-flow pillow headpad
        • Certified NRR: 23 dB

    WIRELESS - Component & Support

    U 9 9 1 0 - B S W

    U9910 – BSW / PN – 40992G-01

      • Hands-free, full duplex intercom via system Gateway
      • Range of up to 300 feet (line-of-sight) to and from the Gateway
      • Once linked to a Gateway, automatically reconnects on each power-up until purged from system (“strong link”)
      • Up to 4 Belt Stations can be connected to the system Gateway
      • Marine-grade, water-tight enclosure and components
      • Audible voice prompts for link/purge status, out-of-range, low battery
      • Easily accessible battery compartment with captive thumb screw
      • Powered by Li-Polymer battery (24 hours continual usage), easily removed for charging (3-4 hours) (not included; must be purchased separately)
      • VOX control with proprietary “helper” tone, assists in ideal VOX setting
      • Large PTT for link, radio PTT, VOX override
      • Power button with LED indicator for visual status of link, PTT and battery charge
      • Military-grade, twist-lock headset connector
      • Rubberized outer skin, black
      • 360-degree rotational belt clip

    U 9 9 1 3 - B S W

    U9913 – BSW / PN – 40992G-07

      • Same as U9910-BSW, except no PTT transmit capability outside the intercom (no radio transmit)
      • Hands-free, full duplex intercom via system Gateway
      • Range of up to 300 feet (line-of-sight) to and from the Gateway
      • Once linked to a Gateway, automatically reconnects on each power-up until purged from system (“strong link”)
      • Up to 4 Belt Stations can be connected to the system Gateway
      • Marine-grade, water-tight enclosure and components
      • Audible voice prompts for link/purge status, out-of-range, low battery
      • Easily accessible battery compartment with captive thumb screw
      • Powered by Li-Polymer battery (24 hours continual usage), easily removed for charging (3-4 hours) (not included; must be purchased separately)
      • VOX control with proprietary “helper” tone, assists in ideal VOX setting
      • Large PTT for link and VOX override
      • Power button with LED indicator for visual status of link, PTT and battery charge
      • Military-grade, twist-lock headset connector
      • Rubberized outer skin, hi-visibility yellow
      • 360-degree rotational belt clip

    U 9 9 2 0 - G P B

    U9920 – GPB / PN – 40993G-01

      • Internal antenna provides range of at least 300 feet from Gateway
      • Attach to aircraft via adjustable lanyard (3′ to 6′) and nylon hook
      • “REMOVE BEFORE FLIGHT” banner included
      • Military grade twist-lock connector mates to aircraft interphone cords.
      • Accommodates up to 4 wireless users per Gateway
      • U9910-BSW user (tug operator) presses PTT to talk to flight deck via Gateway
      • U9913-BSW user (wing-walker) speaks on intercom only (does not transmit to flight deck)
      • Multiple independent Gateways operate in same RF vicinity with no cross-talk; systems in adjacent gates experience no bleed-through
      • Listen level control for regulating volume of flight deck intercom transmissions
      • Close-proximity link via PTT button
      • LED indicator for visual status of comm link and PTT status
      • Rubberized outer skin, hi-visibility orange
      • Easily accessible battery compartment with captive thumb screw
      • Powered by Li-Polymer battery (24 hours continual usage), easily removed for charging

    CORD ASSEMBLIES

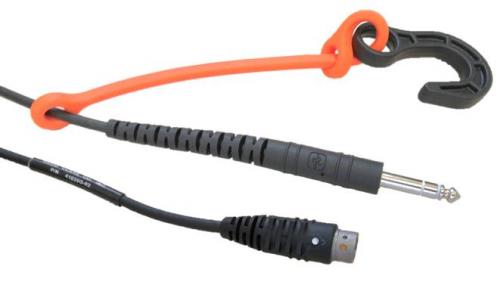

    41035G-02

    41035G-02

    Push-Back Interface Cord, PJ-051 Plug

    U9920-GPB Interface

    1/4″ Stereo Plug for Commercial Aircraft, includes tether and hook for attachment to service panel doors for added strain relief

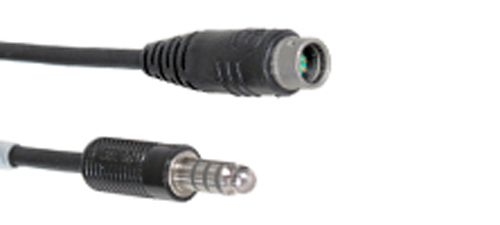

    41035G-03

    41035G-03

    Push-Back Interface Cord, U-174/U Plug

    U9920-GPB Interface

    Civilian Helicopter, Embraer Aircraft (Not for military use)

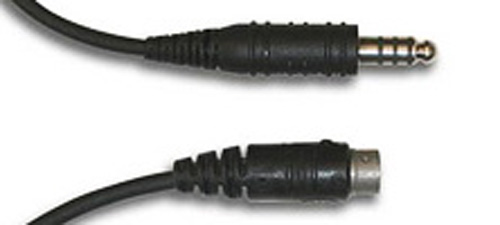

    41035G-05

    41035G-05

    Push-Back Interface Cord, U-174/U Plug with in-line impedance adapter

    U9920-GPB Interface

    Military use only

    41035G-06

    41035G-06

    Push-Back Interface Cord, 7-pin MS connector with in-line impedance adapter

    U9920-GPB Interface

    Military Use Only

    BATTERIES/ CHARGERS

    40688G-90

    Battery

    • Li-Polymer battery pack

    • 3.7V nominal voltage

    A99-14CRG

    Charging Unit, 4-Bay

    C99-14AC2 (230VAC)

    Battery Charger Power Supply Cord Kit Components:

    Power Cord (6.5 ft/2 m)
